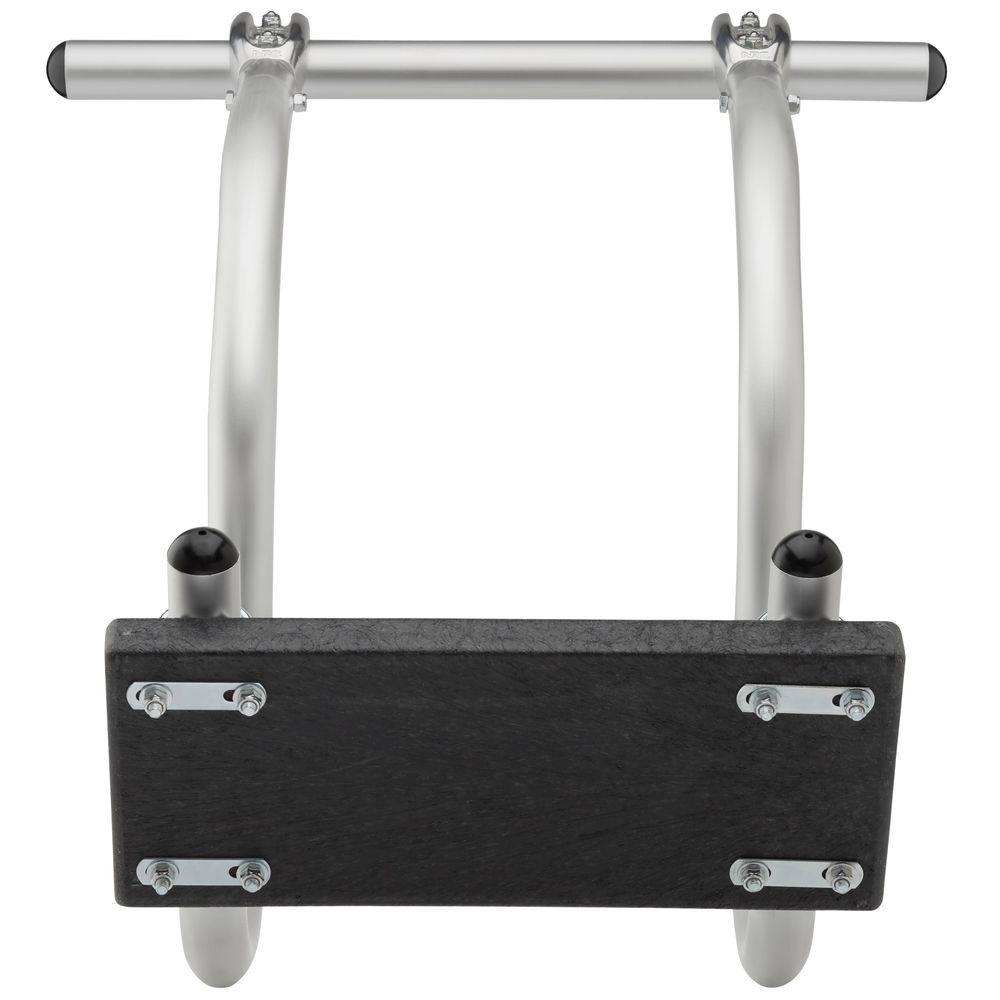

NRS U-Style Motor Mount

Whether you're running a lightweight 3-hp engine or pushing the limits with a 10-hp setup, the NRS U-Style Motor Mount is built to handle the job. Made from durable anodized aluminum, it’s designed for use with NRS frames and offers flexible mounting options based on your setup.

If you already own an NRS Stern Seat Mount, this motor mount attaches directly to either side of the seat plate. If not, it includes a 24" frame pipe for mounting to Stern Side Rails (sold separately). The bars that support the transom are spaced 14" apart, with a 25" distance between the frame attachment point and the upright supports—ideal for most raft tube layouts.

The mount’s composite transom plate resists rot and UV damage, and can be positioned on either side of the uprights for best fit. Custom options are available if your raft’s valves interfere with standard placement.

Installation Note: Always secure your motor with a strap or rope connected to the frame. This product requires either the Stern Side Rails or a Stern Seat Mount , sold separately.

• Weight: 17 lbs
• Material: 1 5/8" 6063-T6 Anodized Aluminum Frame Pipe
• Included Components:
• 2 NRS Frame Pipes with LoPro Fittings
• 6 U-bolts with nuts and washers
• 1 1/2" thick x 7 1/2" high x 18" wide wood/plastic composite transom plate
• 24" frame pipe with frame plugs
• Mount Dimensions:
• A (Frame to upright): 25"
• B (Upright height): 13 7/8"
• C (Base depth): 11"
• Transom Plate: 1 1/2" x 7 1/2" x 18"
